Abrasive Resistant Alumina Ceramic Grinding Cylinder Price From Zibo China Qimingxing
Basic Info.
Model NO. | Ceramic Cylinder |
Density | 3.83G/Cm3 |
Fracture Toughness Kic Mpam 1/2 | 4.2 |
Wear Volume | 0.10 Cm3 |
Compression Strength MPa | 1800 |
Bending Strength MPa | 330 |
Ceramic Block | 40X40X40mm, 45X45X50mm,32X32X22mm, 38X38X38mm,etc. |
Dimple Tiles | 20X20X4-10+1(with 5 Dimples), 20X30X5~15+1(with 18 |
Al2O3 | 99% |
Ceramic Cylinder/Rod | 6X6mm,15X15mm,20X20mm, 31X31mm,40X40mm, 45X50mm, 5 |
Ceramic Plate | 100X100X6~50mm, 150X100X6~50mm, etc. |
Hexagonal Tile | S12.5xt3~20mm, S23.5xt6-25mm |
Square Tile | 10X10X3~10mm, 17.5X17.5X3~15mm, 20X20X3~15mm, etc. |
Transport Package | Box |
Specification | customized size |
Trademark | firstar |
Origin | China |
HS Code | 6909120000 |
Production Capacity | 400t/Month |
Product Description

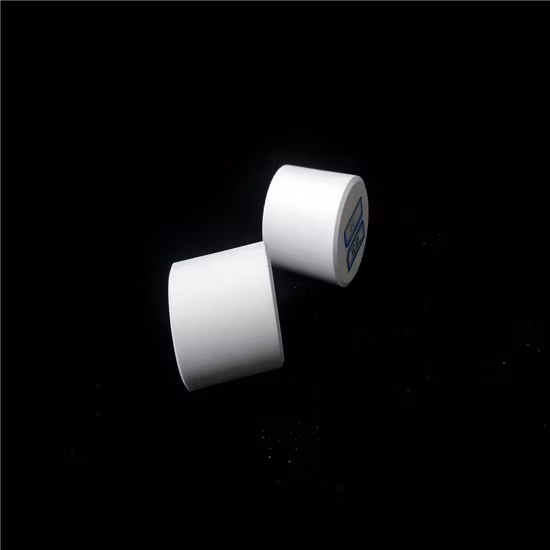

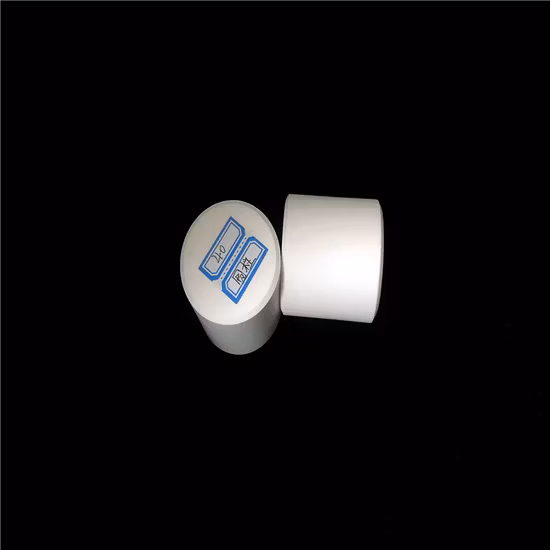

Abrasive Resistant Alumina Ceramic Grinding Cylinder Price From Zibo China Qimingxing
1. Detailed description:
Alumina cylinder is one of best ideal material as lining for wear solution in mining industry, power plant, steel plant, cement plant.Alumina ceramic cylinder is made by high purity alpha alumina oxide ( up to 95%). It is one of best ideal material as wear-resistant lining for abrasion solution in the mining industry, power plant, steel plant, cement plant, etc. Also, the best material embedded in high-quality rubber to anti-impact and wear-resistant to extend the lifetime of industrial equipment effectively
1.Alumina wear resistant compositions include:
l Alumina 92: most common wear product with great wear resistancel Alumina 95: increased wear performancel Alumina T95: premium alumina for best wear resistancel Zirconium toughened alumina(ZTA): increased strength and impact resistance2. Product features:> High hardness > Superior abrasion and impact resistance > Corrosion and chemical resistance > Light weight > Easy installation by epoxy resin or bolt > Improve your working environment-noise, vibration and safety3. Product Specification:- Square tile: 10x10x3~10mm, 17.5x17.5x3~15mm, 20x20x3~15mm, etc.- Ceramic Plate: 100x100x6~50mm, 150x100x6~50mm, etc.- Hexagonal tile: S12.5xT3~20mm, S23.5xT6-25mm- Dimple tiles: 20x20x4-10+1(with 5 dimples), 20x30x5~15+1(with 18 dimples), 20x20x5-10mm( with 13 dimples)- Ceramic Block: 40x40x40mm, 45x45x50mm,32x32x22mm, 38x38x38mm,etc.- Ceramic Cylinder/rod: 6x6mm,15x15mm,20x20mm, 31x31mm,40x40mm, 45x50mm, 50x50mm etc.Detailed PhotosCategory | HC90 | HC92 | HC95 | HCT95 | HC99 | HC-ZTA | ZrO2 |
Al2O3 | ≥90% | ≥92% | ≥95% | ≥ 95% | ≥ 99% | ≥75% | / |
ZrO2 | / | / | / | / | / | ≥21% | ≥95% |
Density | >3.50g/ cm3 | >3.60g/cm3 | >3.65g/cm3 | >3.70g/cm3 | >3.83g/cm3 | >4.10g/cm3 | >5.90g/cm3 |
HV 20 | ≥900 | ≥950 | ≥1000 | ≥1100 | ≥1200 | ≥1350 | ≥1100 |
Rock Hardness HRA | ≥80 | ≥82 | ≥85 | ≥88 | ≥90 | ≥90 | ≥88 |
Bending Strength MPa | ≥180 | ≥220 | ≥250 | ≥300 | ≥330 | ≥400 | ≥800 |
Compression strength MPa | ≥970 | ≥1050 | ≥1300 | ≥1600 | ≥1800 | ≥2000 | / |
Fracture Toughness KIc MPam 1/2 | ≥3.5 | ≥3.7 | ≥3.8 | ≥4.0 | ≥4.2 | ≥4.5 | ≥7.0 |
Wear Volume | ≤0.28 cm3 | ≤0.25cm3 | ≤0.20cm3 | ≤0.15cm3 | ≤0.10 cm3 | ≤0.05cm3 | ≤0.02cm3 |
The company specializes in the production of HC series wear-resistant ceramic liners(alumina ball, zirconium silicate ball, zirconia toughed alumina ball, zirconium ball), agate ball, polyurethane ball, 92/T95/ZTA wear-resistant ceramic liner (alumina liner, zirconium toughed aluminum composite liner, zirconia plate), three-in-one, Two-in-one vulcanized ceramic runner sheet, ceramic mending compound, ceramic lining cyclone, ceramic lining pipe.
OTHER HOT SALE
More Abrasion ceramics products : abrasion ceramics , Alumina ceramics , wear resistant ceramics , alumina pipe liner , ceramic tube , alumina cylinder pipe , wear resistant alumina plate , abrasion ceramic tile , abrasive alumina sheet , friction plain tile , abrasion weldable tile , rubber backed ceramic liner , ceramic composite linings , alumina mosaic sheet , ceramic taper tile for pipe sleeve , ceramic ladder tile for pipe steel , engineering ceramics equipment , pre-fabricated pipe sleeve ,wear resistant bending pipe , abrasion materials
Our Advantages
1. Established in 1997,20 years experience in wear solutions products.2. The factory is under expanding, the total construction area is 10,000 sqm.3.ISO9001:2000 and SGS certified.4. Three Own-designed production lines, included ceramic wear lining, rubber wear liner and ceramic grinding ball.
FAQFAQQ: What is your experience in your products?
A: We have 22 years experience in this industry line. We are professional manufacturer in this area. Q: What is your MOQ?
A: The MOQ is different as per different products, for example, 1 Ton for ceramic ball. Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first
Q: Can you provide free sample?
A: Yes, within 1kg. Q: What is your production time?
A: We have large stock for standard products. Normally within 7-10days after receipt the deposit. Q: What are your payment terms?
A: T/T, L/C, Western Union
